Forklift Starter & Alternator Troubleshooting Guide

Forklift Starters & Alternators: Troubleshooting, Repair, and Parts

The starting and charging system is what gets your forklift running in the morning and keeps it running all shift long. When something goes wrong - a slow crank, a no-crank, a dead battery that won't hold a charge, or a dash battery light that won't turn off - it's almost always one of a handful of diagnosable failures in the starter, alternator, or the wiring and solenoids between them. This guide covers how the starting and charging system works, how to recognize early warning signs before they leave a machine dead on the floor, how to diagnose the root cause, and how to find the right replacement parts for your machine. MagnaSource stocks starters, alternators, solenoids, and related components cross-referenced to Toyota, Hyster, Yale, Crown, Clark, and other major forklift makes.

Shop Starters & Alternators

Forklift starters and alternators - MagnaSource

How the Forklift Starting & Charging System Works

Every IC forklift relies on two separate but connected electrical jobs getting done right: starting the engine, and keeping the battery charged once it's running. Understanding the difference helps fleet managers and technicians tell a starting problem from a charging problem before they start swapping parts.

The starting circuit is simple: turning the key (or pressing the start switch) sends current to the starter solenoid, which engages the starter motor's drive gear with the engine's flywheel and spins the engine over until it fires. That single crank draws a heavy burst of current straight from the battery - which is why a weak battery, corroded cable, or worn solenoid shows up first as a slow or no-crank condition. Once the engine is running, the alternator takes over: it's belt-driven off the engine and generates AC current, which the alternator's internal rectifier converts to DC to recharge the battery and power the machine's electrical accessories while it runs. The voltage regulator - built into most modern alternators - keeps output at the correct charging voltage so the battery charges properly without being overcharged.

Key Components in a Forklift Starting & Charging System

Starter Motor

An electric motor that engages the flywheel and spins the engine over to start it. Draws very high current for a few seconds at a time - worn brushes, a damaged drive gear, or internal winding failure are the most common causes of a slow crank or no-crank.

Starter Solenoid

An electromagnetic switch that closes the high-current circuit between the battery and starter motor when you turn the key. A worn or pitted solenoid causes a clicking noise with no crank, or an intermittent no-start that a fresh battery won't fix.

Alternator

Belt-driven off the engine, the alternator generates power to recharge the battery and run electrical accessories while the engine is on. A failing alternator shows up as a battery that drains during the shift even though it starts fine in the morning.

Battery, Cables & Connections

The battery stores the charge; heavy-gauge cables carry the starting current; ground straps complete the circuit back to the frame. Corroded terminals, a loose ground, or a battery that's simply worn out cause symptoms that look identical to a bad starter or alternator.

The circuit in plain terms: Key/Start Switch → Solenoid → Starter Motor → Engine Cranks → Engine Runs → Alternator Charges Battery. A no-crank condition points to the battery, cables, solenoid, or starter. A battery that keeps dying after the machine starts fine points to the alternator, the belt driving it, or a parasitic drain. Diagnosing starting and charging problems means identifying which side of "engine off" vs. "engine running" the failure shows up on.

7 Warning Signs Your Forklift Has a Starter or Alternator Problem

Starter and alternator failures rarely happen without warning. These are the seven symptoms to recognize - what they look like, what they likely mean, and how urgent each one is - before a small problem leaves a machine dead on the floor mid-shift.

1. Slow or Labored Cranking

The engine turns over noticeably slower than normal when starting, especially in cold weather. It may take longer than usual to catch and fire.

Most Likely Cause

A weak or aging battery, corroded battery cables or terminals, or a starter motor with worn brushes that's no longer drawing full current efficiently.

Schedule service soon

2. No-Crank / Dead on the Key

Turning the key or pressing the start switch produces nothing - no crank, no click, or a single click with no rotation.

Most Likely Cause

A fully discharged or failed battery, a bad ground connection, a failed starter solenoid, or an internally failed starter motor. A single loud click usually points to the solenoid or a weak battery under load.

Remove from service until diagnosed

3. Clicking Noise When Starting

A rapid clicking or single loud click from the starter area when the key is turned, with the engine not cranking.

Most Likely Cause

Insufficient current reaching the starter - most often a weak battery, corroded cable connection, or a solenoid that's pitted and no longer closing the circuit reliably. Rapid clicking usually means the battery is too weak to hold the solenoid closed.

Remove from service until diagnosed

4. Dash Battery/Charge Warning Light On

The battery or charging system warning light illuminates on the dash and stays on while the engine is running.

Most Likely Cause

The alternator isn't generating adequate charging voltage - most commonly a worn brush set, a failed voltage regulator, a slipping or broken drive belt, or a failed diode inside the alternator's rectifier.

Schedule service immediately - battery will deplete

5. Battery Keeps Dying / Won't Hold a Charge

The machine starts fine after sitting overnight but the battery is dead again by the next shift, or it needs to be jumped or charged more frequently than normal.

Most Likely Cause

An alternator that's not charging the battery while the engine runs, a battery that's reached the end of its service life, a parasitic electrical drain, or a loose/slipping alternator belt reducing charging output.

Schedule service soon

6. Dim or Flickering Lights, Slow Accessories

Headlights or dash lights appear dim or flicker, especially at idle, or electrical accessories (horn, gauges) act sluggish or erratic.

Most Likely Cause

Inadequate alternator output reaching the electrical system - a slipping belt, worn brushes, or a failing voltage regulator. Flickering that gets worse at idle and improves at higher RPM points strongly to the alternator.

Schedule service - inspect belt and alternator output

7. Grinding Noise on Startup

A harsh grinding or whining noise when the key is turned, either right at startup or lingering briefly after the engine has already started.

Most Likely Cause

The starter's drive gear isn't engaging the flywheel cleanly - worn drive gear teeth, a worn flywheel ring gear, or a starter that's staying engaged after the engine has already fired. This wears both the starter and the flywheel further the longer it's ignored.

Remove from service until repaired

Why this matters (OSHA 29 CFR 1910.178): A forklift that dies mid-lift or won't start reliably creates operational risk - stalled loads, blocked aisles, and operators tempted to bypass safety checks to get a machine running. 1910.178(q)(1) requires powered industrial trucks to be maintained in safe working order. 1910.178(e)(1) requires pre-shift inspection before each use. A forklift with a no-crank condition, a persistent battery warning light, or a grinding starter should be removed from service until repaired.

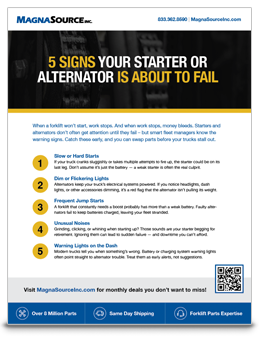

5 Signs Your Forklift Starter or Alternator Is About to Fail - MagnaSource White Paper

Free White Paper

5 Signs Your Starter or Alternator Is About to Fail

Get more detail on each warning sign above, plus what to check first, in one quick read. Share it with your techs so a slow crank or a dimming light gets fixed before a machine dies mid-shift.

Download the White Paper (PDF)

Diagnosing Forklift Starter & Alternator Problems

The most common diagnostic mistake is replacing the starter or alternator before isolating whether the problem is actually the battery, the cables, or the part itself. A weak battery can mimic a bad starter; a loose belt can mimic a bad alternator. A logical diagnostic sequence takes less time - and costs less - than guessing.

Quick Reference: Symptom → Cause → Test → Part to Check

Symptom	Most Likely Cause	Diagnostic Step	Part to Inspect / Order
Slow or labored cranking	Weak battery; corroded cables; worn starter brushes	Load-test the battery; check cable/terminal condition	Battery; battery cables; starter
No-crank / dead on the key	Dead battery; bad ground; failed solenoid or starter	Check battery voltage under load; test solenoid click and voltage drop	Battery; solenoid; starter
Clicking noise, no crank	Weak battery; corroded connection; pitted solenoid	Voltage-drop test across battery cables and solenoid	Battery cables; starter solenoid
Dash battery/charge light on	Alternator not charging; slipping belt; bad regulator	Check charging voltage at battery with engine running	Alternator; drive belt
Battery keeps dying	Alternator undercharging; parasitic drain; worn battery	Charging voltage test; parasitic draw test with multimeter	Alternator; battery; drive belt
Dim/flickering lights	Low alternator output; slipping belt	Check charging voltage at idle vs. higher RPM	Alternator; drive belt
Grinding noise on startup	Worn starter drive gear; worn flywheel ring gear	Inspect drive gear engagement and flywheel teeth	Starter; flywheel ring gear (if worn)

The Starting & Charging System Voltage Test

This test tells you whether a no-start or dead-battery problem originates from the battery, the charging system, or the starter itself - before you order parts.

1
Test battery voltage with the engine offA healthy, fully charged 12V battery should read approximately 12.4-12.8V at rest. Anything meaningfully lower suggests the battery is discharged or has reached the end of its service life.
2
Load-test the battery and check cranking voltageA battery that drops sharply under starter load, even if it reads acceptable at rest, points to a weak battery rather than a starter problem.
3
Check charging voltage with the engine runningA healthy alternator should raise system voltage to roughly 13.8-14.4V at idle. A reading close to resting battery voltage means the alternator isn't charging - check the belt, then the alternator itself.
4
Voltage-drop test the cables, ground, and solenoidExcess voltage drop across a cable, terminal, or the solenoid under cranking load points to corrosion or a failing connection - often the real cause behind what looks like a "bad starter."

When to order parts vs. call a tech first: If the battery load-tests weak or the terminals are visibly corroded, start there - it's the cheapest and most common fix. If charging voltage is low with a good belt and healthy connections, the alternator is the likely culprit. If the starter clicks but doesn't crank with a known-good battery and clean connections, the solenoid or starter itself needs replacement. When symptoms overlap or voltage readings are borderline, a tech's assessment helps confirm the diagnosis before you order.

Forklift Starter & Alternator Components: What They Are and What They Do

Knowing the name and function of each component is the first step to ordering the right part. These are the core components in a forklift starting and charging system - how they work, how they fail, and what to order when they do.

Starter Motor

Cranks the engine over to start it, drawing a heavy burst of current from the battery.

How It Fails

Internal brushes wear down over thousands of start cycles, reducing cranking power until the motor can no longer turn the engine over reliably. The drive gear (bendix) can also wear or stick, causing grinding noises or a starter that spins without engaging.

What to Order

Starter matched to your forklift model, engine, and voltage (12V or 24V). Cross-reference by model, serial number, and OEM part number - starters vary by tooth count and mounting configuration even within the same engine family.

Starter Solenoid

An electromagnetic switch that closes the high-current circuit to the starter motor.

How It Fails

Internal contacts pit and corrode from repeated high-current cycling, eventually failing to make a clean connection. This shows up as an intermittent no-start, a single loud click, or a starter that occasionally needs a second try.

What to Order

Solenoid matched to voltage and mounting type - some are integrated into the starter itself, others are a separate remote-mount unit. Confirm which configuration your machine uses before ordering.

Alternator

Belt-driven off the engine, recharges the battery and powers accessories while running.

How It Fails

Internal brushes wear down over time, reducing charging output gradually before failing completely. The rectifier's diodes can also fail, and a bearing can wear and start to whine or growl. Any of these show up first as a dash warning light or a battery that won't hold a charge.

What to Order

Alternator matched to your forklift's voltage and amperage rating - not just physical fit. A 40-amp unit swapped for a 70-amp unit (or vice versa) can undercharge the system or overload the wiring.

Voltage Regulator

Keeps the alternator's output at the correct charging voltage.

How It Fails

Built into most modern alternators, a failed regulator causes either undercharging (dim lights, dying battery) or overcharging (a battery that boils electrolyte and fails prematurely). On most forklift alternators, the regulator isn't separately serviceable - the whole alternator is replaced as a unit.

Why It's Often Overlooked

Symptoms of a bad regulator look identical to a worn-out alternator, which is why a charging voltage test at the battery - not just a visual inspection - is the reliable way to confirm the problem.

Drive Belt

Turns the alternator (and often the water pump) off the engine's crankshaft pulley.

How It Fails

Belts glaze, crack, and stretch with age and heat cycling. A slipping or under-tensioned belt reduces alternator output well before the belt fully fails - showing up as dim lights or a slow-charging battery long before a visible break.

Ordering Belts

Provide the OEM part number or overall belt length and width if cross-referencing. Check belt tension and pulley alignment at every service interval - a properly tensioned belt is the cheapest insurance against premature alternator wear.

Browse Drive Belts →

Battery, Cables & Ground Straps

Store starting power and carry heavy current to the starter and back through the ground.

How They Fail

Batteries lose capacity with age and heat-cycling and eventually can't hold enough charge to crank reliably. Cable terminals corrode, especially in outdoor or high-moisture environments, adding resistance that starves the starter of current even with a good battery.

Ordering Batteries & Cables

For batteries: confirm voltage, group size, and cold-cranking amp (CCA) rating match OEM spec. For cables: replace both the cable and terminal together rather than just cleaning corrosion - a cleaned but weakened terminal often fails again within months.

Forklift Starter & Alternator Maintenance Schedule

Most starting and charging failures are gradual and preventable. The intervals below are consistent with major OEM maintenance specifications for counterbalanced IC forklifts in normal indoor/outdoor service. Heavy-duty, outdoor, dusty, or high-cycle environments require more frequent inspection across all intervals.

Interval	Task	Notes
Daily pre-op	Note cranking speed and starting behavior. Watch for a battery/charge warning light staying on after startup. Listen for clicking, grinding, or unusual noise when starting.	OSHA 1910.178(e)(1) requires a pre-shift inspection before each use. A machine that's slow to start or shows a charge warning light is a developing problem, not a one-off.
250 hours	Visually inspect battery terminals and cables for corrosion. Check alternator drive belt tension and condition. Clean any corrosion from terminals and re-torque connections.	Outdoor and high-moisture environments corrode terminals faster - inspect more frequently in these settings.
500 hours	Load-test the battery. Check charging voltage at the battery with the engine running (target roughly 13.8-14.4V at idle). Inspect starter and alternator mounting for looseness.	A battery that load-tests weak at this interval should be scheduled for replacement before it leaves a machine stranded.
1,000 hours / annual	Full voltage-drop test across battery cables, ground straps, and the starter solenoid. Replace the drive belt proactively on high-hour machines. Inspect starter for drive gear wear and listen for bearing noise in the alternator.	Replacing a marginal belt and cleaning/re-torquing connections at this interval is far cheaper than a stranded machine and an emergency service call.
Any time: slow crank or clicking	Load-test the battery and voltage-drop test the cables and solenoid before assuming the starter has failed.	A weak battery or corroded cable is a far more common cause than a failed starter - and much cheaper to fix.
Any time: battery/charge light stays on	Check charging voltage and belt condition immediately - do not continue operating on battery power alone.	Continuing to run with a charge light on will fully deplete the battery and can leave the machine dead mid-shift.

Battery type and voltage matter as much as physical fit. Confirm your machine's rated voltage (12V or 24V) and the battery's group size and CCA rating before ordering a replacement. An undersized battery or a mismatched alternator amperage rating can leave a machine chronically hard to start even when every other component is healthy.

How to Find the Right Forklift Starter & Alternator Parts

Starters and alternators are highly machine- and engine-specific. The same model forklift built across different production years may use different starter tooth counts, alternator amperage ratings, and mounting configurations. Here's what you need - by part type - to order accurately the first time.

Starters

Have your forklift model number and serial number ready, plus the engine type and voltage (12V or 24V) if known. Starters vary by drive gear tooth count and mounting flange even across similar-looking engines - order by description alone and you risk the wrong fit.

Browse Starters by Manufacturer →

Alternators

Your OEM part number from the parts manual is the fastest path. If unavailable, provide model, serial number, engine type, and system voltage. Amperage rating matters as much as physical fit - confirm your machine's rated output before ordering.

Browse Alternators by Manufacturer →

Solenoids, Belts & Batteries

For solenoids: confirm whether your starter uses an integrated or remote-mount solenoid. For belts: OEM part number or overall length and width. For batteries: voltage, group size, and CCA rating matched to OEM spec.

Browse Drive Belts →

MagnaSource Stocks Starters & Alternators For:

ToyotaHysterYaleCrownClarkCaterpillar TowmotorContinentalDaewooGenieHyundaiNissanHangchaCascadeCaseCushmanDrexelJLGSky TrakSkyjackSnorkel

Browse Starters & Alternators by Manufacturer →

Forklift Starter & Alternator FAQ

How do I know if it's the battery or the starter?

Load-test the battery first - it's the fastest and cheapest check. A battery that reads acceptable voltage at rest but drops sharply under cranking load is weak, even if it "seems fine" otherwise. If the battery load-tests strong and connections are clean but the starter still clicks without cranking (or does nothing at all), the starter or solenoid is the more likely cause. Replacing a starter without ruling out the battery first is the most common wasted repair in this category.

Why does my forklift start fine but the battery dies during the shift?

This is a classic charging system symptom, not a battery or starting problem. If the machine cranks normally on a charged battery but that battery is dead again after a shift, check alternator output with a voltmeter at the battery while the engine runs - it should read roughly 13.8-14.4V at idle. A reading close to resting battery voltage means the alternator isn't charging, which is often the drive belt, worn brushes, or a failed regulator.

Is it safe to keep running a forklift with the battery warning light on?

No. A battery/charge warning light means the alternator isn't adequately charging the system, and the machine is running on battery power alone. Continuing to operate will fully deplete the battery, potentially stranding the machine mid-lift, and can shorten battery life. Schedule diagnosis and repair before the next shift rather than running it down.

What does a clicking noise when starting usually mean?

A rapid clicking sound almost always means the battery doesn't have enough current to hold the starter solenoid closed - check the battery first. A single loud click with no crank points more toward a solenoid that isn't making a clean connection, or a starter with an internal fault. Voltage-drop testing the cables and solenoid under cranking load will confirm which it is.

Can I just clean corroded battery terminals instead of replacing cables?

Cleaning corrosion provides a temporary fix, but corrosion that's severe enough to affect starting has usually already begun degrading the cable and terminal material underneath. If corrosion recurs quickly after cleaning, or if a voltage-drop test still shows excess resistance after cleaning, replace the cable and terminal together rather than repeating the cleaning cycle every few weeks.

How often should I replace a forklift alternator or starter proactively?

Most OEMs don't specify a hard replacement interval for starters and alternators - they're replaced on condition rather than on a fixed schedule. That said, high-hour machines (typically 4,000+ hours) or units with a history of slow cranking, dimming lights, or marginal charging voltage are good candidates for proactive replacement during a planned service window rather than waiting for a failure that takes the machine down unexpectedly.

Does a bad drive belt really affect the alternator that much?

Yes. A glazed, cracked, or under-tensioned belt slips under load, spinning the alternator slower than its rated speed - which reduces charging output even though the alternator itself is completely healthy. This is one of the most overlooked causes of "bad alternator" symptoms, and checking belt tension and condition is a fast, inexpensive first step before ordering a new alternator.

Where can I buy forklift starters and alternators cross-referenced to my machine?

MagnaSource stocks starters, alternators, solenoids, and related components cross-referenced to Toyota, Hyster, Yale, Crown, Clark, Caterpillar Towmotor, Continental, Daewoo, Genie, Hyundai, Nissan, Hangcha, and other major makes. Shop at magnasourceinc.com. Have your model number and OEM part number ready for the fastest cross-reference. Browse current Starters & Alternators Specials for current discounts on popular starting and charging system parts.
